View all product photos (6)
Photographs show example configurations. Open a photo to view the larger version.

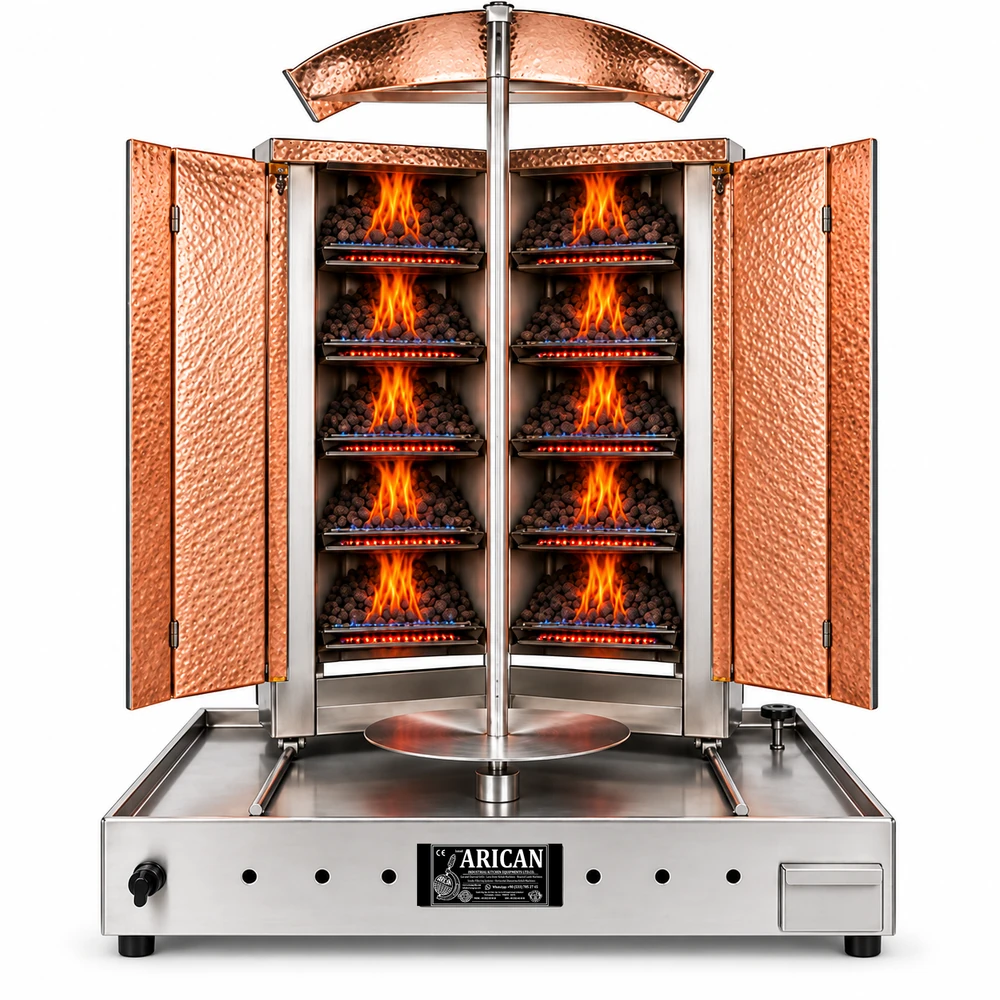

V-type gas & lava-stone doner machine · 5+5 burners · Copper cladding
AG-403 · ARC LDCV006
Two heating banks form a V around a single vertical spit. A vertical spit presents the meat to the cooking unit for doner and shawarma service in restaurants. Burner arrangement: 5 + 5; Motor voltage: 220 V.
Models in this range
Choose a model: its photos, specifications and quotation request update here.
AG-403V-type gas & lava-stone doner machine · 3+3 burners · Stainless steel3+3 burners · Stainless steelCurrent model
ARC LDV004V-type gas & lava-stone doner machine · 4+4 burners · Stainless steelARC LDV004Current model
ARC LDV006V-type gas & lava-stone doner machine · 5+5 burners · Stainless steelARC LDV006Current model
AG-403V-type gas & lava-stone doner machine · 6+6 burners · Stainless steel6+6 burners · Stainless steelCurrent model
AG-403V-type gas & lava-stone doner machine · 3+3 burners · Copper cladding3+3 burners · Copper claddingCurrent model
ARC LDCV004V-type gas & lava-stone doner machine · 4+4 burners · Copper claddingARC LDCV004Current model
ARC LDCV006V-type gas & lava-stone doner machine · 5+5 burners · Copper claddingARC LDCV006Current model
AG-403V-type gas & lava-stone doner machine · 6+6 burners · Copper cladding6+6 burners · Copper claddingCurrent modelSee all models (9)
Configure your quotation
Configuration
Choose the standard or bain-marie production configuration.
The listed technical values describe the selected main machine. Additional bain-marie power, dimensions and heating type are confirmed separately for the order.
Bain-marie configuration examples
These reference images show the bain-marie arrangement. They do not replace the selected model’s product photographs or confirm its exact dimensions.
A different size or finish can be requested here. We confirm the configuration, drawing and price in your quotation.
Configured to order. Request your individual quotation.
Request a quote on WhatsAppAsk about door-to-door delivery to your address.
Product details
Two heating banks form a V around a single vertical spit. A vertical spit presents the meat to the cooking unit for doner and shawarma service in restaurants. Burner arrangement: 5 + 5; Motor voltage: 220 V.
From selection to delivery
Share your menu, available space, fuel supply and delivery city. We will prepare a quotation covering the selected equipment, options and delivery arrangements.
Fuel and gas configuration are selected before manufacture; confirm compatibility for your destination.
Technical information
- Burner arrangement
- 5 + 5
- Meat capacity
- 350 kg
- Gas heating power (left + right)
- 22.5 + 22.5 kW
- Width × depth × height
- 100 × 100 × 140 cm
- Number of spits
- 1
- Motor power
- 26 W
- Motor speed
- 1 rpm
- Motor voltage
- 220 V
- Motor frequency
- 50 Hz
Equipment, installation and documents
Standard included
Standard accessories are not listed here. Ask for the included equipment and chargeable options in your written quotation.
Optional
Optional equipment is identified separately in the order specification.
Installation preparation
Plan delivery access, the final machine footprint and working space for doors, trays, spits and maintenance. Match gas and electrical services to the supplied rating plate. Provide commercial extraction and replacement air suitable for the selected fuel; installation follows the model instructions.
Capacity and performance
Load capacity is not hourly output. Test conditions for a guaranteed cooking time or hourly output are not published.
Compare the 2026 doner range
These are catalogue configurations. Product photographs show example builds; confirm the final model, appearance and installation requirements in your quotation.
| Model | Finish / colour | Burner configuration | Maximum spit load | Gas heat input | W × D × H | Request your quotation |
|---|---|---|---|---|---|---|
| ARC LD003 | Stainless steel | 3 | 60 kg | 11.25 kW | 45 × 80 × 110 cm | Choose your doner model ↗ |
| ARC LD004 | Stainless steel | 4 | 90 kg | 15 kW | 45 × 80 × 125 cm | Choose your doner model ↗ |
| ARC LD006 | Stainless steel | 5 | 130 kg | 22.5 kW | 45 × 80 × 140 cm | Choose your doner model ↗ |
| ARC LD008 | Stainless steel | 6 | 160 kg | 30 kW | 45 × 80 × 155 cm | Choose your doner model ↗ |
| ARC LDC003 | Copper cladding | 3 | 60 kg | 11.25 kW | 45 × 80 × 110 cm | Choose your doner model ↗ |
| ARC LDC004 | Copper cladding | 4 | 90 kg | 15 kW | 45 × 80 × 125 cm | Choose your doner model ↗ |
| ARC LDC006 | Copper cladding | 5 | 130 kg | 22.5 kW | 45 × 80 × 140 cm | Choose your doner model ↗ |
| ARC LDC008 | Copper cladding | 6 | 160 kg | 30 kW | 45 × 80 × 155 cm | Choose your doner model ↗ |
Meat load is the maximum load on the spit, not hourly production. Motor: 26 W · 220 V · 50 Hz · 1 rpm
